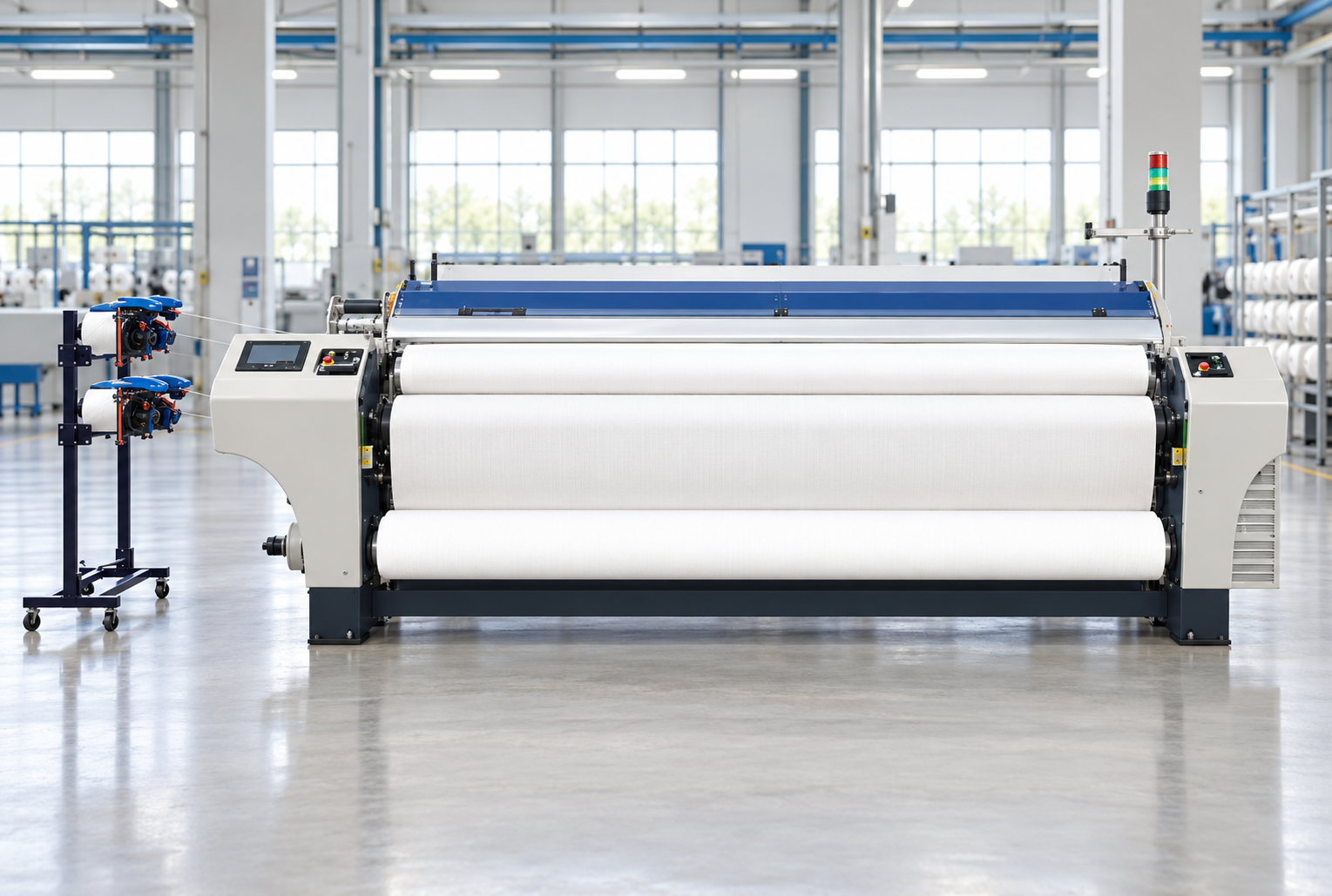

Waterjet Loom SD-408
Price on Request
Product Specifications
- Bigger bearing is applied in shedding area and double oil seal design prevents water leakage. l\Iechanical suction motor is installed in the right side of the machine which optimizes the condition of the machine.
- Changes have been made to sheddrng lever. which gives more beating power, reduces vibration and decreases the friction between reed and warp yarn.
- Five angle or triangle beam is applied to increase machine rigidity, thus the machine is ableto weave fine, high density and heavy weight fabrics.
Products Description
| Item | Description | Brand | |
|---|---|---|---|
| Reed width | Nominal (cm) | 150,170, 190, 210, 230, 280, 320, 360 | |
| Weft Selection | 1 color, 2 color,3 color, 4 color | ||
| Structure | Robust structure, Strengthen body with high CNC precision. | ||
| Driving | Starting method | Quick start | |
| Gear box | Shanghai Yinchun | ||
| Motor capacity | 1.8KW, 2.2KW, 2.8KW, 3.3KW, 3.7KW | ||
| Oil seal | TTO, Taiwan | ||
| Belts | EC-Bird | ||
| Main Bearings | Nachi, Japan | ||
| Bearing bush | Dubang, America | ||
| All type of bolts and screws | Shanghai Yinchun | ||
| Brake pad | Shanghai Yinchun | ||
| Operation | Stopped by the electromagnetic brake at the programmed position. (Arrange, run, stop, forward inching, reverse inching, programmed position stop after one turn reverse rotation optional) | ||
| Beating shaft | 10mm thickness steel shaft Crank beating, oil bath lubricating system. | ||
| Beating | The reed | Standard SS #304 high quality reed | |
| Pump System | Jilong (JL) | ||
| Weft Insertion | Nozzle | MDH, Korea | |
| Plunger | MDH, Korea | ||
| One way valve | TAE BAEK, Korea | ||
| Shedding | Feeder | Shanghai Yinchun | |
| Plain | EC-Bird by Shanghai Yinchun | ||
| Cam | EC-Bird by Shanghai Yinchun | ||
| Shedding | Dobby | Top mounted mechanical or electronic dobby With 16 heald frames | EC-Bird by Shanghai Yinchun |
| Heald frame | Heavy duty aluminum frame | Shanghai Yinchun | |
| Heald wire | Nylon heald wire | Shanghai Yinchun | |
| Let-off | Mechanical | Standard mechanical let-off system | |
| Electronic | With Servo motor, synchronized with electronic controller | Shanghai Yinchun | |
| Take-up | Transmission | Zero max transmission | Shanghai Yinchun |
| Flange diameter | 800mm or 1000mm (optional) | ||
| Back rest roller | Twin type, 102mm roller with special anti rusting treatment with 9mm let-off spring | ||
| Mechanical | Standard mechanical take-up system | ||
| Electronic | Electronic take-up synchronized with electronic controller | Shanghai Yinchun | |
| Cloth passage | Standard, Tsudakoma type | ||
| Cloth roller | Standard aluminum cloth roller | Shanghai Yinchun | |
| Weft supply stand | Floor mounted stand | ||
| Selvage formation | Twisted by planetary gear system | ||
| Waste weft removal | Catch cord with spindle twisting system | ||
| Cutter | Mechanical cutter | EC-Bird | |
| Temple | Top mounted: 2 barrel type with 2 rings type. | Jilong (JL) | |
| Water suction | Slit tube suction system. | ||
| Stop motion | Weft yarn | Feeler | |
| Stop indication | 4 color multi function indication lamps. | ||
| Painting | Well equipped production line to remove dust, rust particles and inorganic debris by sand blasting method. (1) Zing epoxy paint 2 times, (2) Middle epoxy paint 2-3 times, (3) Surface paint 2 times. | ||
| Electronic control system | All in one electronic controller with digital display | Shanghai Yinchun | |
| Weave navigation system | Wi-Fi connect, smart Cloud based loom monitoring system. For operational data, storage and navigation. | Shanghai Yinchun | |
